Mobile Gold Wash Plant

Generally Description

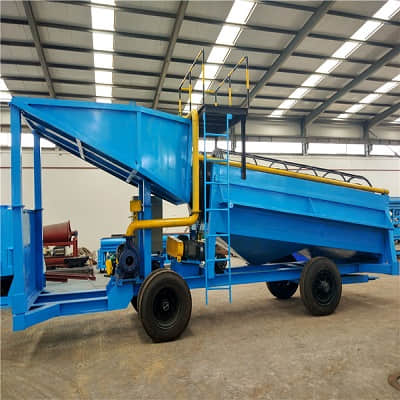

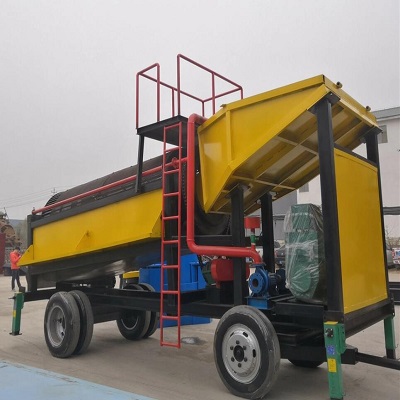

Mobile gold washing plant is composed by hopper, trommel, chassis, tires, turntable, generator, water pump, gearing, control panel and gold recovery sluice. The mobile trommel screen is an optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation. Its advantages include less investment, fewer labors, fast return of investment, simple operation, mobile etc. And this mobile gold mining equipment is very popular in Africa, Asia, South America area due to its easy movable and easy operation.

Main parts and characteristics

1. Feeding system:
Feeding hopper with grizzly screen to block out the big size stones (if needed);
Water spray pipes along the hopper linings for slurrify the soils.
2. Clay processing system: (if needed)
Clay scrubber with scrubbing teeth for breaking and washing off the clay.
3. Screening system:
Heavy duty mining trommel for washing, screening and separating;
Two sieves for the trommel, inner sieve is 20mm steel bars, outer sieve is customized;
High pressure water spray pipes on both sides of trommel for water spraying.
4. Recovery system:

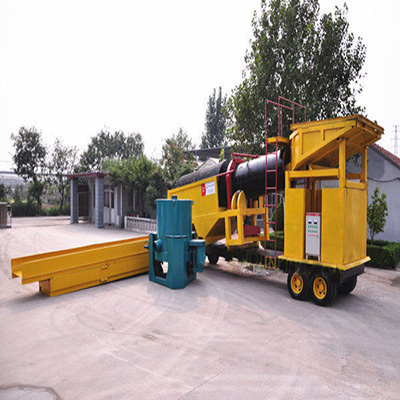

Knelson concentrator + sluice box for fine size gold recovery
Vibrating slucie + sluice box with Mitsubishi carpet for coarse gold recovery
5. Water supplying system:
Multiple sets big power submersible slurry pumps;
With all water hose, valves, etc.
6. Controlling system:
Control cabinet with buttons to control each equipment and the whole wash plant;
One-man control.
7. Power supplying system:
Diesel generator, petrol generator, gas generator, etc
Cummins brand, China Weichai brand, etc
8. Mobile system:
Mobile base with heavy duty wheels and towing mechanism.

The whole drum adopts strong and reinforced roller support and gear side drive, or chain pulley drive.

The screen using high manganese steel woven net, it has large processing capacity, high efficiency, long service life, and easy to replace, no clogging.

The chassis using heavy duty beam and equipped with six tires and four mechanical support legs has sturdy construction, they can reinforce the bearing big capacity of the whole chassis, ensure the equipment run more smoothly, reliable and safe during load running.

The front wheel can achieve 180° turn, flexible move, let the mobile platform can easily cope with all kinds of complicated road.

Generator & motor separated drive, or direct diesel engine drive, low failure rate, easy maintenance.

The gold recovery sluice covered by professional gold recovery carpet made of

polyethylene non-woven, strong catch ability, high efficiency, it is also effective for fine particle gold.

The drum can be divided into heavy duty and light duty.

Heavy duty: the drum has a double-layer structure, inner layer with dense steel bar structure, which can prevent large material impact the screen directly, greatly improved the service life and screening efficiency for the outer screen.

Light duty: the drum has a single layer screen, it is used in the material that no large material included, its advantage is light, which can reduce the weight of the whole equipment and energy consumption.

Features:
-Capacity ranges from 10 tons per hour to 500 tons per hour
-Designed specifically according to client's mining situation to ensure highest recovery rate
-Stationary type with skids
-Using multiple sets of long sluice box with carpet for highest recovery
-Low cost, easy to install, operate and maintain
-Long life technical support

Please contact us for the technical data sheet or customize the most suitable machine for your mining!

Packaging & Shipping

All the packing methods are accordance with the international export standard: container 20GP or 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
