Structure

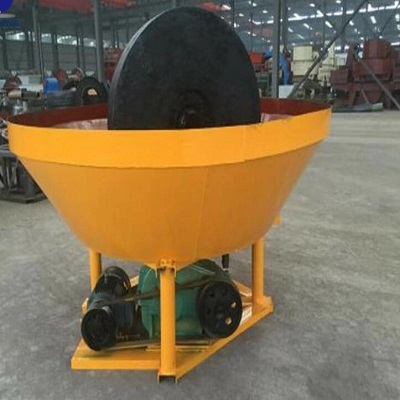

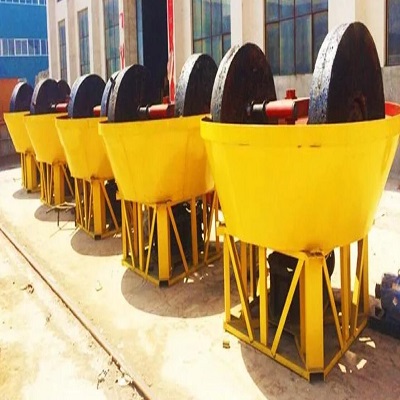

The wet pan mill which is named by the diameter of grinding roller, is mainly applied for grinding of some kinds of mining.

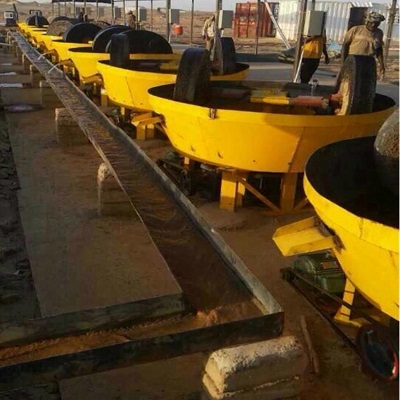

In Sudan, at least 85% gold miners are using the Gold Grinding Machine (wet pan mill) in there gold processing system.
Wet Pan Mill Working Principle
1.Firstly the motor will transmit the motive power to reduction gears,under the drive of reduction gears that passing through large vertical spindle,then the power cabient transfers to above whippletree.
2.The whippletree pulls the two runner wheels clcokwise rotation,runner wheels are not only revoluting around the large vertical spindle but also could retating by themselves.
3.After adding into ore,the materials are under the extrusion of grinding roller weight to revoluting and rotating with runner wheels,when twisting that coming into being huge friction force with grinding base,after suffering repeated extrusion,rub,grinding that be crushed thoroughly.
4.Under the effection of grinding roller operating,the crushed materials and the water mixed intensively to float on it uniformly,then passing through the overflow discharge gate that setting up on the mill basin to discharge,after that enter into next operation procedure to process.
5.Coarse mineral was sank on the bottom of grinding base,going on grinding and crushing,till the fineness could reach to standard floating on it.
Please contact us for the technical data sheet or customize the most suitable machine for your mining!
Packaging & Shipping
1. The machine will be packed in export container.
2. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
3. We promise that your goods will be shipped to destination timely and safely.
