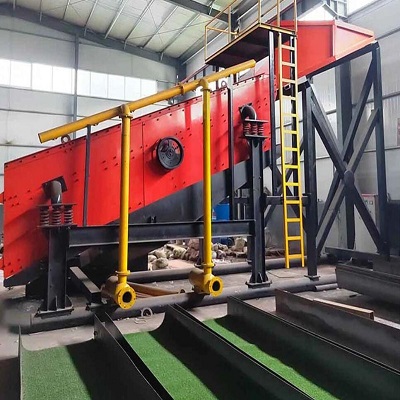

Vibrating Screen Wash Plant

Hydraulic Vibrating screen gold wash plant

Description:

This machine is suitable for those no road river bed, mountain area & canyon area alluvial gold washing & processing, requires no electric supply. It is designed to be disassembled into pieces in short time, which could be carried by manpower, and also could be assembled quickly. Machine works stably, low failure rate, simple operation and easy to move. It has 2 pcs of sluice box with new type sluice mat, which could recover those coarse & fine size gold particles together.

Features:

-Designed specifically according to client's mining situation to ensure highest recovery rate
-Stationary type

-Fully hydraulic

-Machines capacity from 10 tons to 200 tons per hour

-Using sluice with rubber mat for gold recovery
-Commercial quality at affordable prices, easy to install, operate and maintain

-No trommels to slow the production or get jammed up

-Reliable machine with less down time and more profits

-Life long tech support

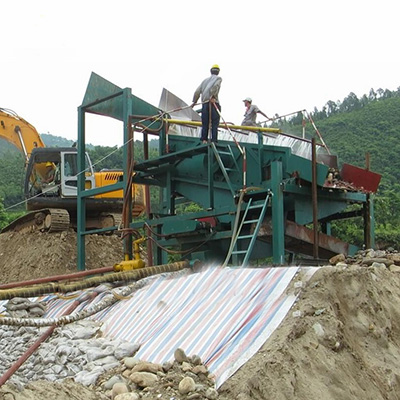

All-in-one Gold Mining Wash Plant.

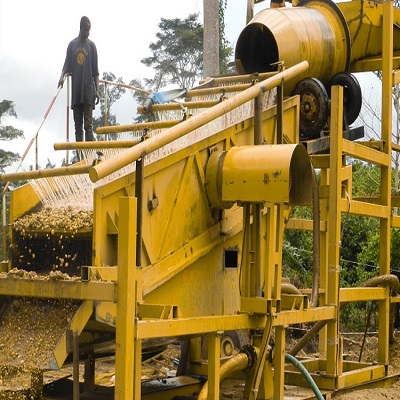

Each machine is a complete portable plant; there is no need for additional screens or sluice boxes! At the top is an extremely heavy duty grizzly bar section that will take up to 24 inch rocks (91 cm). Classification begins when the material is placed on the grizzly bars, and high-pressure water separates the sub-1” (25.4 mm) material from the large rocks. Then the screen deck further classifies the material, and sub-.25” (6.35 mm) material drops into the sluice boxes, remaining sub-1” material passes through the nugget trap into the final.

Next, the screen deck further classifies the material, and sub-.25” (6.35 mm) material drops into the sluice boxes, remaining sub-1” material passes through the nugget trap into the final riffle set for capture, and larger rocks get discharged.

The sluicing system has three boxes that are independently adjustable, gold recovery is excellent. It often exceeds 95%, even with fine gold down to 200 mesh! The key to such remarkable recovery is because our design was based on the performance data found in a landmark technical report on sluice boxes and riffle systems.

Driving System:

All of the driving system are 100% hydraulic, without electricity. Our system is driven directly by a hydraulic motor without a belt or chain drive, which means no transmission is wasted. Hydraulic drive system can reduce fuel consumption and reduce mechanical loss as well.

Please contact us for the technical data sheet or customize the most suitable machine for your mining!

Packaging & Shipping

All the packing methods are accordance with the international export standard: container 20GP or 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
