Gold Shaking Table

Description

Gold Shaking table is one of the important dressing equipment depending on the gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Shake Tables are designed to wet gravity based separation of minerals and other granular materials. There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals. The raw materials on the shaking table are with mixed densities, the suspending particles of the mate.

Application of shaking table

Gold Shaking Tables are designed to wet gravity-based separation of minerals and other granular materials.

There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

Shaking table construction

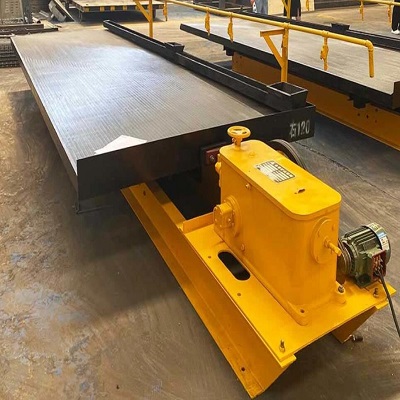

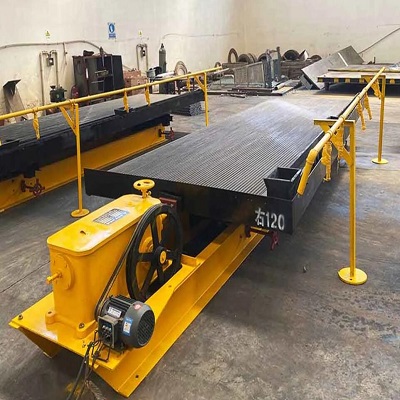

Shaking table head

The head motion is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.

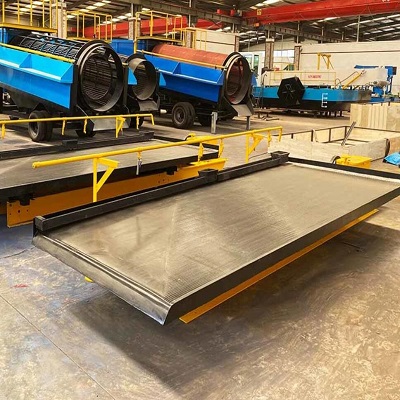

Shaking table Deck

The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom, and are easy to clean, required little maintenance. The specific gravity of fiberglass made into decks is one third of that of steel, while its strength reaches as high as 70% of the steel. The fiberglass desk also has the characteristic of water-resistance and corrosion-resistance, and can hold the shape unchangeable at ±50℃.

Decks

Shaking Table have three distinct deck designs available.

--Course ore deck is designed for recovering particles size from 0.5 mm to 2.0mm;

--Fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;

--Slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

Shaking table feeder and Water Box

A wooden feeding ore box with hopper and a long water box are attached to the iron of the deck, give a very uniform feeding and water supply.

Shaking table Steel Base

There are ordinary type, groove steel support or big channel steel support available.

Advantages of  shaking table

1. High recovery ratio;

2. High concentration ratio;

3. Easy installation;

4. Simple operation;

5. Deck constructed of fiber glass;

6. Seven different decks to choose;

7. Long working life;

8. Adjustable stroke length and speed.
